ROTARY DOMES

observatory domes  -   clamshell domes   -   roll-off observatories   -    RC telescopes   -   research



ROTARY DOMES have a sliding shutter window, that opens only a slit to the sky, thereby optimally protecting the telescope against gusts of wind.



A rotary dome moves in sync with the telescope and the sky, always providing an unobstructed view for the telescope. This makes operating a rotary dome a bit more complicated in comparison with clamshell domes and roll-off observatories.

Software takes care of the synchronization of the telescope and the dome.



Tradiional rotary domes have long been the dome of choice, even for very big observatories. Today, special and more dedicated constructions have take over, even to the point that dome itself is the telescope.



DOME PARTS optical offers tradional rotary domes of 2M, 3M, 4M and 5.5M in diameter.





2M DOME



quick take

Dome only version:

-- diameter of the dome: 2000 mm

-- shutter width: 590 mm

-- dome height: ca. 1400 mm

-- diameter of the base: 1940 mm

-- diameter of the outer base ring: 1940 mm

-- diameter of the inner base ring: 1820 mm

-- for telescopes up to 12 inch, equatorial







Options / available versions:

-- color options (RAL colors)

-- manual versions, no motors

-- semi-automatic versions with only the shutter drive installed

-- fully automatic dome versions with ASCOM compliant dome / shutter drive & control system

-- Cloud & Rain sensor

-- LCD touch screen

PRICE starting at: € 6948,-

(tax free)

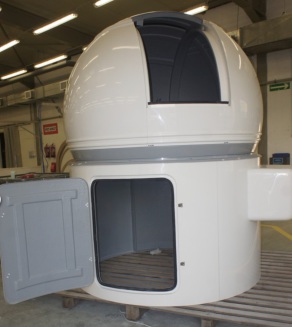

2M -H80 DOME



quick take

-- diameter of the dome: 2000 mm

-- shutter width: 590 mm

-- dome height (above riser): 1400 mm

-- diameter of the base: 1940 mm

-- diameter of the outer base ring: 1940 mm

-- diameter of the inner base ring: 1820 mm

-- for telescopes up to 12 inch, equatorial


Overall height
-- Riser ring wall:  80cm,  height 2340 mm

-- weight (with pallet): ~ 250 kg

-



Options / available versions:

-- extra bays  and doors on demand

-- color options (RAL colors)

-- manual versions, no motors

-- semi-automatic versions with only the shutter drive installed

-- fully automatic dome versions with ASCOM compliant dome / shutter drive & control system

-- Cloud & Rain sensor

-- LCD touch screen

PRICE starting at: € 8436,-

(tax free)

2M -H120 DOME



quick take

-- diameter of the dome: 2000 mm

-- shutter width: 590 mm

-- dome height (above riser): 1400 mm

-- diameter of the base: 1940 mm

-- diameter of the outer base ring: 1940 mm

-- diameter of the inner base ring: 1820 mm

-- for telescopes up to 12 inch, equatorial



Overall height

-- Riser ring wall:  80cm,  overall height 2615 mm

-- weight (with pallet): ~ 300 kg









Options / available versions:

-- extra bays  and doors on demand

-- color options (RAL colors)

-- manual versions, no motors

-- semi-automatic versions with only the shutter drive installed

-- fully automatic dome versions with ASCOM compliant dome / shutter drive & control system

-- Cloud & Rain sensor

-- LCD touch screen

PRICE starting at: € 8988,-

(tax free)

3M  DOME



quick take

-- diameter of the dome: 3000 mm

-- shutter width: 1000 mm

-- dome height: 2400 mm

-- diameter of the base: 2760 mm

-- weight (with pallet): ~350 kg

-- for telescopes up to 16 inch, equatorial



Overall height

-- no riser. Dome height: 2.400mm



Access door is optional.

Can be either left or right oriented, or on demand: installed in the west or east shell panel.



Options / available versions:

-- door option

-- color options (RAL colors)

-- dome alone version, manual operation

-- dome with semi automatic, motorized shutter   (ask us for details!)

-- fully automatic dome versions with ASCOM compliant dome / shutter drive & control system

-- Cloud & Rain sensor

-- LCD touch screen

PRICE starting at: € 11500,-

(tax free)

NEW:

SP-32 support building

for all our 3M  DOMES

(dome is NOT included..!!)

quick take

- warm room

- all electrics, switches, lights installed

- red & white lights

- workbench included

- stairs into the dome from below

- optional outside stairs

- lockable sliding door

- includes roof cover and sealing

- pier planning

- customizable

PRICE starting at: € 8.450,-

(tax free)

4M  DOME



quick take

-- Dome diameter: 4000 mm

-- Shutter width: 1170 mm

-- Dome height: 2960 mm

-- Diameter of the base ring: 3500 mm

-- Height of the base: 1100 mm



-- Dome weight: 875 kg (comes on 2 pallets)

-- for telescopes up to 20" equatorial,

   or 40" alt/az mounted













Options / available versions:

-- Access door

-- color options (RAL colors)

-- steel support system

-- inner & our stairway

-- platform: optional

-- floor system

-- fully automatic dome versions with ASCOM compliant dome / shutter drive & control system

-- Cloud & Rain sensor

-- LCD touch screen



PRICE starting at: € 24240,-

(tax free)

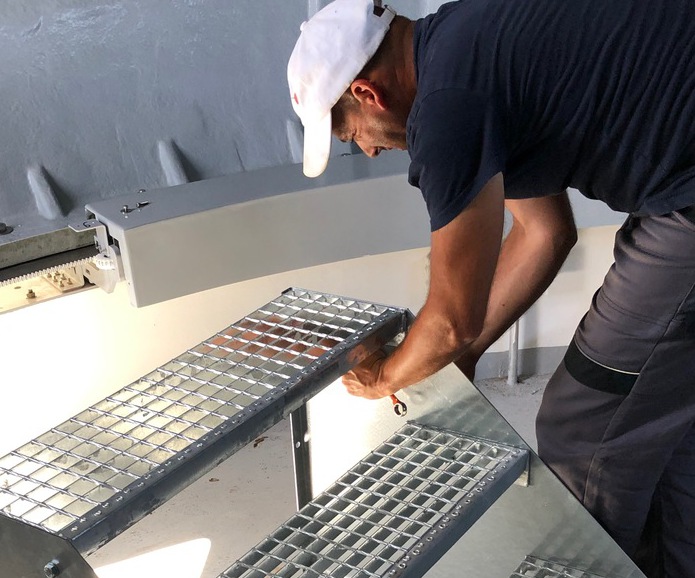

Console PRO  stair systems for 3M,4M & 5M

modular design

Clean design and functionality were what we had in mind.

What came out was our rugged steel Console-Pro Stair System.

Completely fire galvanized, it will last for years to come.

scalable





Console-Pro Stair Systems are scalable and customizable for your observatory. Railings on demand.



Ask us and we will advise on the best solution.

inside stairs shaped to your dome

The inside member of a

Console-Pro Stair System is bended and follows the profile of your dome, leaving as much space as possible for you and your telescope.

5.5M  DOME



quick take

-- Diameter of the dome: 5500 mm

-- Width of the shutter: 1700 mm

-- Height of the dome: 3800 mm

-- Diameter of the base ring: 5000 mm

-- Height of the base: 1100 mm



Overall height:

-- Dome weight: 1500 kg (comes on 3 palets)

-- for telescopes up to 50" alt/az

   or 30" equatorial mounted









Options / available versions:

-- access door

-- color options (RAL colors)

-- steel support system (SSSR-5M)

-- inner & our stairway

-- tower system

-- severe weather kits

​-- floor system

-- fully automatic dome versions with ASCOM compliant dome / shutter drive & control system

-- Cloud & Rain sensor

-- LCD touch screen

PRICE starting at: € 42912,-

(tax free)

DOWNLOAD your latest ScopeDome USB CARD  and ARDUINO SOFTWARE

or technical documentaton HERE



WE SHIP ALL OVER THE WORLD

 ask for a shipment quote!

All prices are tax free  -- all prices are in EURO (€)
