ROLL-OFF OBSERVATORIES

observatory domes  -   clamshell domes   -   roll-off observatories   -    RC telescopes   -   research

ROLL-OFF OBSERVATORIES

are an absolutlly cost-effective alternative for those that do not want, or for whatever reason, cannot have a dome.



This type of observatory has all the advantages of a clamshell dome: a vast and almost unrestrcited nightsky, easy operation.



Most of our GreenLIne roll-off observatories come as DIY kit.







GreenLine

MINI-32

1.60x1.60M



- superieur construction

- user friendly: manually moved roof

- space-saving, folded rear shutter

- now with dual slanted roof

- very durable

- spaceous: 1.60x1.60M

- holds telescopes up to 12"

- quality sliding door

- 100% DIY

- affordable

- OPTIONAL ROOF DRIVE AVAILABLE!





QUICK TAKE

our GreenLine MINI-32 observatory is a sturdy roll-off, that comes in the standard version with manual-only operation of the roof. For those that want remote operation: the GreenLine MINI is (of course!) ready for that. Add our optional roof drive and control system and you can use the GreenLine MINI as a remote observatory. You will still have the regular push-button operation.

DOME PARTS optical offers control systems with USB and Ethernet ports for PC control.

With its spaceous 1.60x1.60M floor space, telescopes of 10-12 inch on a steel pier fit-in well.  We advise our optional wood treatment to prepare the observatory against, weather, fungi and insects.



ONE EXTRA PLUS: all GreenLine Roll-Off observatories come fully prepared for our SEMI and FULL electric roof drives: sprocket gear, pulleys, steel cables and adjustable counterweights are all in the package!



kit prices starting at: € 3.655,-

(taxfree)

ask a shipment quote...

GreenLine

MEDIUM-32

2.25x2.25M



- superieur construction

- user friendly: manually moved roof

- rear shutter

- now with dual slanted roof

- very durable

- spaceous: 2.25x2.25M

- holds telescopes up to 14"

- quality sliding door

- 100% DIY

- affordable

OPTIONAL ROOF DRIVE AVAILABLE!





QUICK TAKE

the GreenLine MEDIUM-32 and 44 roll-off observatories come with a royal 2.25Mx2.25M floor space and can hold telescopes of up to 14 inch (if you plan well, even a 16 inch can fit in here!). This is already a rather big observatory with ample space for optional tables, work surface and storage shelfs along the walls. This is a real dream come true.



It is not amazing that the GreenLine MEDIUM is our most sold roll-off observatory, worldwide!



The optional roof drive and control systems make this a fine and versatile remote.

Again, we advise our optional wood treatment to prepare the observatory against, weather, fungi and insects.



ONE EXTRA PLUS: all GreenLine Roll-Off observatories come fully prepared for our SEMI and FULL electric roof drives: sprocket gear, pulleys, steel cables and adjustable counterweights are all in the package!



kit prices starting at: € 4.495,-

(taxfree)

Made for hobby-astronomers,

by hobby-astronomers!

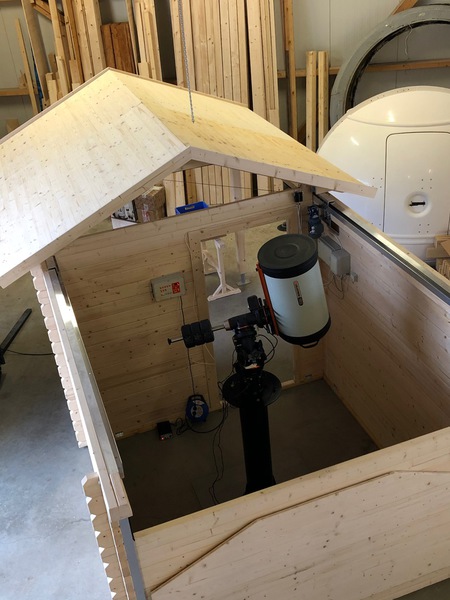

A fine example of a typical telescope set-up in one of our GreenLIne Roll-Off observatories.



In contrast to a dome, the roll-off observatory offers the maxium of space, with ample room for equipent, workbenches and equipment shelfs and storage cabinets.



The rear wall moves in sync with the roof section to give an unobstructed view of the sky.

Optional warm-room solutions with separte doors at the front section) round-off this excelent design.





GreenLine

BIG-32

2.75x2.75M



- superieur construction

- user friendly: manually moved roof

- space-saving, folded rear shutter

- now with dual slanted roof

- very durable

- spaceous: 2.75x2.75M

- holds telescopes up to 16"

- quality sliding door

- 100% DIY

- affordable

OPTIONAL ROOF DRIVE AVAILABLE!



QUICK TAKE

The "workhorse" GreenLine BIG-32 (and -44) roll-off observatory is ideal for the demanding hobby astronomer, schools, companies and asdtronomical societies: lots and lots of floor space! This is the right roll-off, if you plan to put some real big fancy hardware on your mount. A well placed RC20 finds a safe home in this observatory.

All bigger GreenLine roll-off observatories come with movable rear walls that run in sync with the roof, to offer an optimal FOV on the southern (or northern!) horizon. A lockable, sliding door is standard. Special doors on request. Our optional roof drive and control systems make this a fine and versatile remote. Control systems can come with USB or Ethernet ports for PC control and remote operation. We advise our optional wood treatment to prepare the observatory against, weather, fungi and insects.



ONE EXTRA PLUS: all GreenLine Roll-Off observatories come fully prepared for our SEMI and FULL electric roof drives: sprocket gear, pulleys, steel cables and adjustable counterweights are all in the package!



kit prices starting at: € 5.985,-

(taxfree)

ask a shipment quote...

GreenLine

MEGA-44 multi telescope set-up





for multi-telescope setups





quick take

superieur construction

- user friendly: manually moved roof

- space-saving, folded rear shutter

- now with dual slanted roof

- very durable

- very spaceous: 3.50Mx3.50M

- holds telescopes up to 16"

- quality sliding door

- affordable!

- optional construction service available!



OPTIONAL ROOF DRIVE AVAILABLE!

telescopes are NOT included :-)

DESCRIPTION

Meet our top-of-the-line GreenLine MEGA roll-off observatory if you want to install more than one telescope.



For this large observatory we offer several "warm" room options, as well as an advanced  powerful roof drive system with one of our state of the art SEMI automatic control systems. (Push-button, USB and Ethernet)

A lockable, sliding door is standard. Special doors on request.



This roll-off observatory is ideal for telescope farms, astronomical societies, schools, companies and institutions.



ONE EXTRA PLUS: all GreenLine Roll-Off observatories come fully prepared for our SEMI and FULL electric roof drives: sprocket gear, pulleys, steel cables and adjustable counterweights are all in the package!



prices starting at: € 11.135,-

(taxfree)

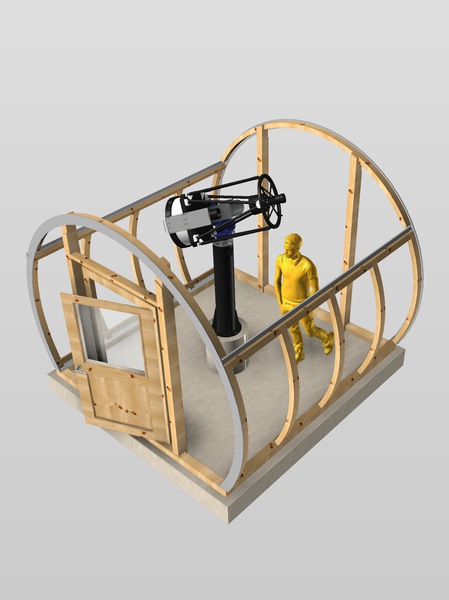

GreenLine

RC-33series

Clamshell Observatory



With a royal 3Mx3M floor space, it is the ideal garden observatory for hobby astronomers.



This GreenLine clamshell observatory can easily hold telescopes of up to 20 inch and safely park them, either alt/az, or on a equatorial mount.



Building on our experience with producing our successful range of GreenLine Roll-Off observatories, we have developed an aesthetically nice observatory, that fits in any garden.



The telescope, mount and pier is  just an example and NOT included !



RC-33M Clamshell Observatory

Note:

- internal color mat-black

- swing door, with or withoutt glass window

-  heavy belt redirect roller system

- motor mounting bases installed

- 8 heavy duty rollers per shutter element

- rain water run-off integrated in both shutters



there are two versions:



 ----------------------> RC-33M with SEMI-automatic shutters:

€ 13.315,-

(taxfree)

Note:

- SEMI automatic roof drive, two AC motors, with (separate) push-button control of shutters

- independent positioning of the shutters

- sturdy twin belt-drive system with inverter driven motors

- industry grade gearboxes

- 220VAC

(ask us for DC drvie solutions)



 ---------> RC-33M with FULLY-automatic shutters (ASCOM)

€ 14.620,-

(taxfree)

Note:

- FULL automatic roof drive, two AC motors, with (separate) push-button control of both shutters

- independent positioning of the shutters

- sturdy twin belt-drive system with inverter driven motors

- ASCOM compliant

- Ethernet connection

 industry grade gearboxes

- 220VAC

(ask us for DC drvie solutions)

SPARE PARTS

we stock every single part, that we use iin our GreenLine roll-off observatories. Contact us!

mechnical parts

you can order any of the mechnical parts needed to keep your GreenLine Roll-Off observatory running. Call us or order by e-mail



complete roof drive systems

we stock single and dual roof drive systems for your Roll-Off observatory, 1:10 and 1:20 industry grade gearboxes and inverter systems.

control boards & switches

from limit switches, emergency buttons, key-switches, to the push-buttons that move the roof, we stock everything. Control boards, DIN pwoer supplies, it is all there. Simply contact us to get your part.
